IP68
Complete dust and water protection, high-pressure washing permitted. Certified per datasheet.
Key features
Chemical resistance
Resistant to aggressive environments, UV radiation, and rodents. Custom configurations available.
Fire safety
Maintains operability during fire for at least 240 min — per datasheet.
Factory-ready
Fully factory-assembled sections, fast installation. Parameters confirmed by catalog and quotation.
Application context
METAENERGY cast-resin busway — up to 10 kV, IP68, for substations and harsh environments. Used where cable systems cannot meet operational or dimensional requirements. Customers include substation owners, energy service and electrical contractors, oil and gas, chemical, metallurgical, and transport infrastructure facilities.
Typical challenges
- Cable replacement is limited by constraints on dimensions, supports, and routing.
- Specifications require moisture, dust, and aggressive environment protection with documented certification.
- Fire safety requirements can only be met with complete certification package and current datasheet.
- Proper interface with MVA/MVS low-voltage distribution is required.
METAENERGY solution
- Cast-resin busway IP68, installed per project with allowances for clearances and supports.
- Housing resistant to chemicals, UV, and high-pressure washing. Characteristics certified per datasheet.
- Fire operability of at least 240 min — per datasheet. Datasheet and catalog provided for acceptance.
- Direct interface with MVA and MVS busbar trunking per project specifications and catalog.
When to choose cast-resin busway
When cable systems cannot provide the required IP68 protection, chemical resistance, or fire performance, design organizations consider cast-resin busway. This applies to compact enclosed substations, high-density equipment retrofits, and installations with limited mounting space.
Cast-resin busway is used in generation and distribution circuits up to 10 kV, with rated currents up to 6300 A. System service life is specified in the type datasheet; certain configurations claim a service life comparable to long-term operation of cable lines under similar conditions.
Below — STA and STS cast-resin busway series (up to 10 kV, IP68). Cast-resin busbar trunking IP68 up to 1 kV is a separate SVA/SVS series; link in the range section below.
Products
METAENERGY cast-resin busways are available in two conductor materials — aluminum and copper. Both series have IP68 protection, are installed from factory-ready sections, and are compatible with MVA/MVS busbar trunking.
Each product line includes sections with rated currents from 800 to 6300 A in 1L, 2L, 3L configurations. Specific section types and part numbers are available in the manufacturer's catalog.
STA

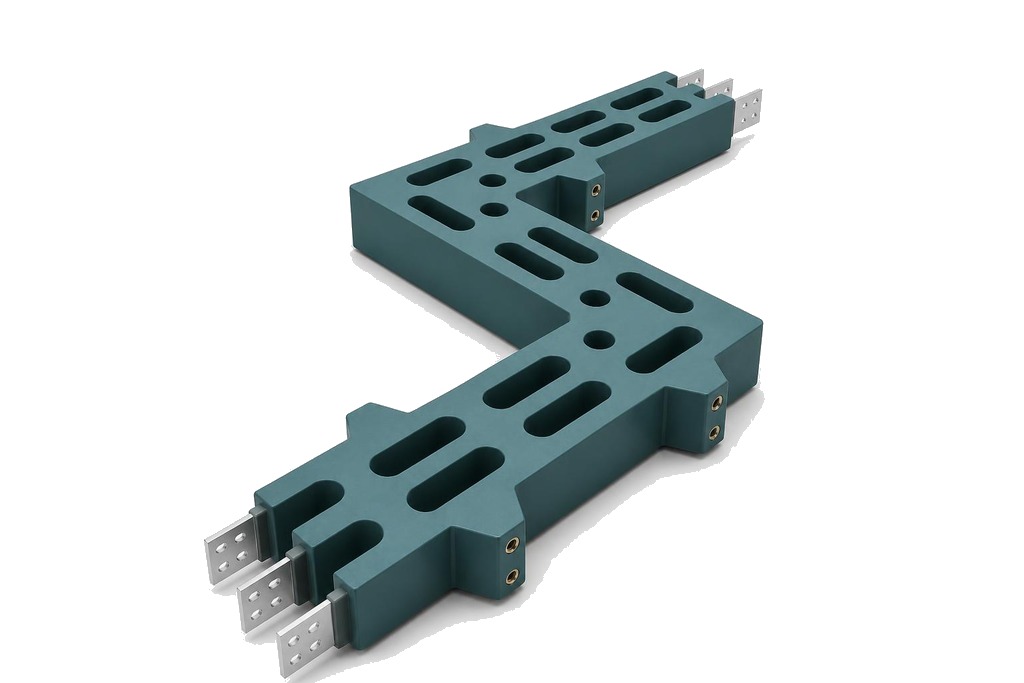

STA Cast-Resin Busway (Aluminum Conductors)
Rated up to 10 kV. Aluminum conductors, compound enclosure IP68. For substations, power generation, and heavy industry.
- IP68 protection rating
- Compatible with MVA busbar trunking systems
- Heat dissipation through enclosure — per datasheet
- Fire resistance of at least 240 min — per datasheet
Part number follows the 98ab8c template, where a = rated current code, b = configuration type, c = section number. See catalog for detailed specification.
STS

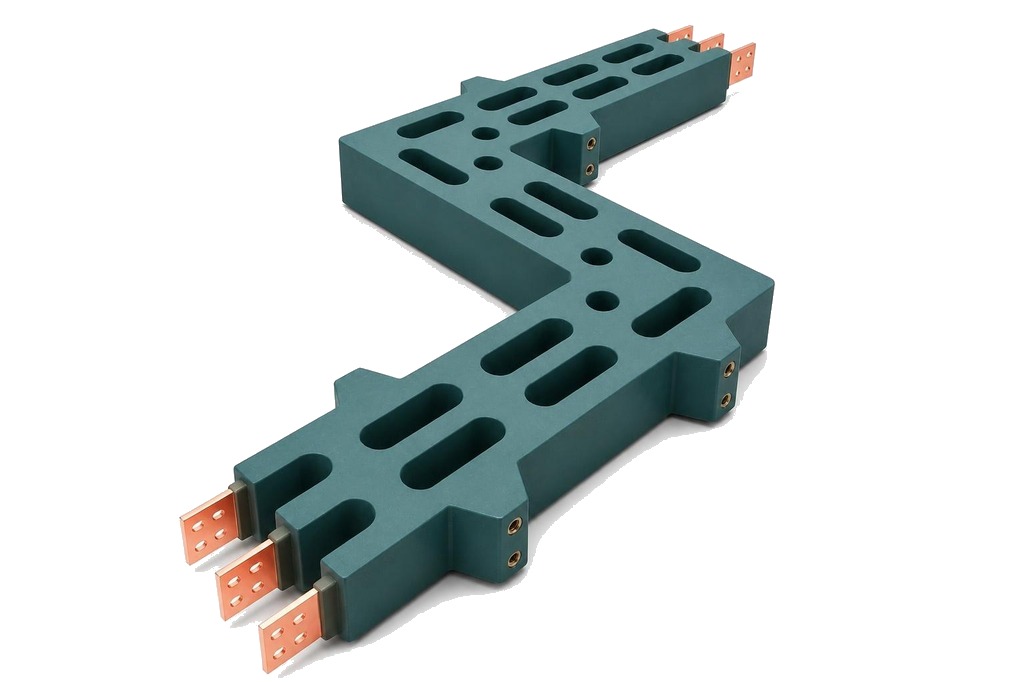

STS Cast-Resin Busway (Copper Conductors)
Rated up to 10 kV. Copper conductors, cast enclosure IP68. For facilities with high conductivity requirements and minimum losses.
- IP68 protection rating
- Compatible with MVS busbar trunking systems
- Chemical resistance and UV stability — per catalog
- Fire resistance — per datasheet and quotation
Part number format: 99ab8c. Rated current, configuration, and section type are selected from the catalog. Custom configurations available.
Sizes and Selection
Rated currents for METAENERGY cast-resin busways. Specific configurations and exact values are provided in the datasheet and catalog.
Rated current range (reference)
| Rated Current, A | Note |
|---|---|
| 800, 1000, 1250, 1600, 2000 | Base values for engineering design |
| 2500, 3200, 4000 | Standard for distribution networks |
| 5000, 6300 | Heavy-duty configurations, refer to catalog |
Comparison with Cable Systems
Key operational differences between cast-resin busway and traditional cable installations. Data is provided per catalog and product datasheet.
| Parameter | Cable System | METAENERGY IP68 Busway |
|---|---|---|
| Protection rating | Depends on configuration, typically below IP68 | IP68 (complete protection against dust and water) |
| Fire resistance | Determined by cable type and penetrations | Fire resistance of at least 240 min, per datasheet |
| Chemical and UV resistance | Requires additional enclosures | Proven resistance, housing withstands chemicals and UV radiation |
| Installation | Significant time for routing and termination | Factory-assembled sections, installation per design (time and cost savings per quote) |
| Service life | Depends on operating conditions — per cable line datasheet | Per busway type datasheet; specific value in technical documentation and product certificate |
| Connection to MVA/MVS | Transition assemblies required | Connection per catalog and design solutions |
Complete factory assembly
Each busway section is delivered ready for installation. Specifications are documented in the datasheet and catalog — the basis for design approval.
Advantages
Cast-resin busways address requirements where not only electrical parameters matter, but also environmental resistance and ease of installation.
Integration into low-voltage distribution
Connection to MVA and MVS busbar trunking systems per design solutions, without extra adapters when geometry is coordinated. Conductors and connection assemblies are agreed upon at the design stage.
Verified specifications
Heat dissipation through housing, fire resistance, mechanical strength — parameters are documented in the product datasheet. Scope of acceptance testing is determined by the project and specifications.
Performance in harsh conditions
Housing is non-combustible, rodent-resistant, does not create draft. Suitable for a wide range of climatic zones, including Arctic and desert environments — per version datasheet.
Additional information for designers
Flexible busbars
Flexible busbars are included in the busway assembly to compensate for thermal expansion and vibration. Parameters available on request.
Fire barrier
When passing through building structures, fire-rated penetrations or barriers are used per design. Fire resistance requirements are confirmed per datasheet.
Busbar expansion joints
Aluminum expansion joints KSHA — for compensating thermal elongation in busbar systems. Compatibility to be verified per catalog.
Sections and configurations
Straight, angled, flange entries, connection blocks — full range of sections selected per manufacturer catalog. Configurations: 1L, 2L, 3L.
Connection to MVA/MVS
1 kV busbar trunking systems MVA and MVS series connect to busway per design solutions and catalog. Geometry and assemblies are coordinated at the design stage.
Datasheet and acceptance
Each product is supplied with an up-to-date datasheet containing fire and operational specifications for project requirements.
Position in METAENERGY product range
Cast-resin busways are part of the METAENERGY power distribution system, covering solutions from 1 kV to 10 kV.
Busbar trunking systems up to 1 kV IP55/IP66
MVA (Al) and MVS (Cu)
Series 88xx and 89xx SKUs. Foundation of low-voltage distribution.
Cast-resin busways up to 1 kV IP68
SVA (Al) and SVS (Cu)
Low-voltage cast-resin busway IP68 up to 1000 V. Same housing technology as the busway; voltage class up to 1 kV.
Cast-resin busways up to 10 kV IP68
STA (Al) and STS (Cu)
Medium-voltage busway group for generation, substations, and industry. Connect to MVA/MVS on the low-voltage side.
