Main IP55/IP66 and cast-resin IP68 busbar trunking up to 1 kV
For industrial and civil facilities
Key features
Components and Documentation
Joint units, tap-off units, specifications, assembly drawings, technical passport — supplied per catalog.
Insulation Reliability
Halogen-free and phenolic resin-free insulation, operating temperature up to 150 °C, service life of at least 25 years.
Fire Protection for Penetrations
Kit with mineral fiber boards and adhesive provides fire resistance up to 240 min — per documentation.
Application Scope
Low-voltage busbar trunking up to 1 kV is designed for main distribution of electrical power in industrial and civil facilities. Used from transformer substation infeeds to high-power loads and consumer switchboards.
Common Challenges
- Joint connections: improper installation (torque or alignment failures) leads to localized overheating and insulation damage.
- Incorrect selection of current rating and dimensions — underspecification or overspending on the project.
- Design not matching environmental conditions (IP per IEC 60529) — accelerated degradation and risk of failure.
- Incomplete project documentation and specifications — re-approvals, schedule delays.
METAENERGY Solution
- Supply of busbar trunking with load-based selection, documentation, and components per catalog and technical passport.
- Joint units and tap-off units — per catalog, housing with cooling fins.
- Continuous overload up to 120 % — confirmed by technical passport and type test reports.
- Application in projects with GOST and IEC requirements, local Russian manufacturing.
Typical Installation Sites
Industrial plants, warehouses and logistics centers, shopping and business centers, residential complexes, administrative buildings. Especially in demand where main distribution, tight installation schedules, and convenient connection of units from main switchboards and transformer substations are required.
Cast-resin busway IP68 — SVA and SVS series; main distribution IP55/IP66 — MVA and MVS. Conductor material, degree of protection, and design type are selected per catalog and technical passport.
Products
Main distribution IP55/IP66 and cast-resin busway IP68 up to 1 kV
The product range includes main distribution busbar trunking with IP55/IP66 protection (MVA and MVS series) and cast-resin busway IP68 (SVA and SVS series). Aluminum items — 88xx series, copper — 89xx series. Ratings, dimensions, and configurations — per catalog and technical passport.
MVA / MVS (series 88xx / 89xx)

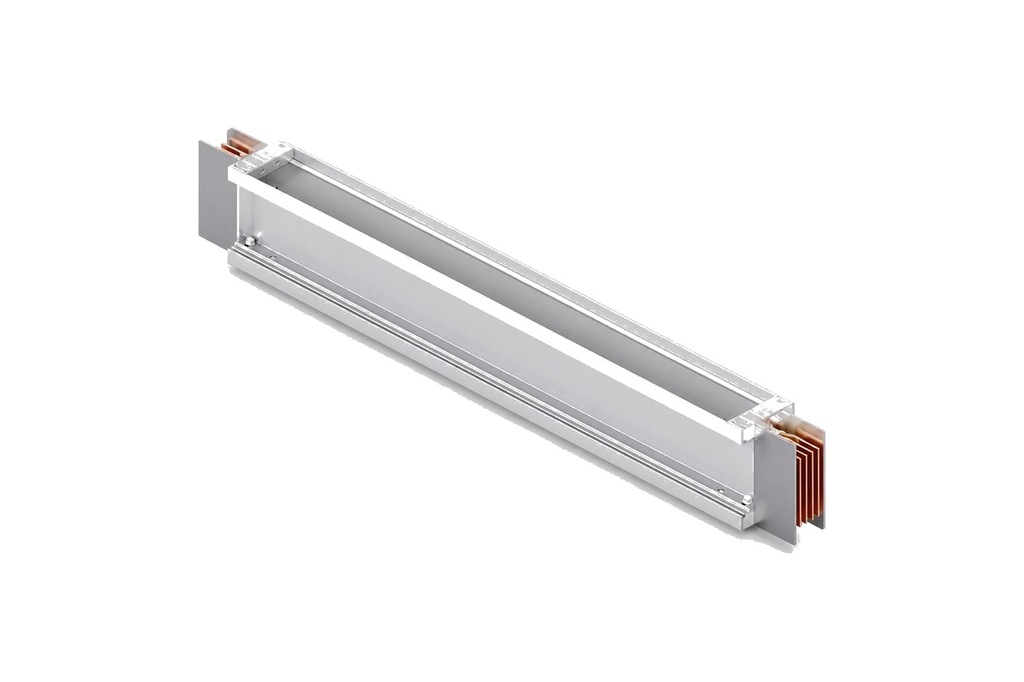

Main Distribution Busbar Trunking
For main distribution of electrical power in industrial and commercial buildings. IP55, IP66 protection. Aluminum conductors (MVA) or copper (MVS).
- Overload up to 120 % — per technical passport and type test reports
- Joint units and tap-off units per catalog and technical passport
- Cooling fins on housing
- Halogen-free and phenolic resin-free insulation, operating temperature up to 150 °C
- Insulation service life of at least 25 years
For designers: complete specification, assembly drawing, identification tags on each section. Documentation supplied with order.
SVA / SVS (cast-resin IP68)

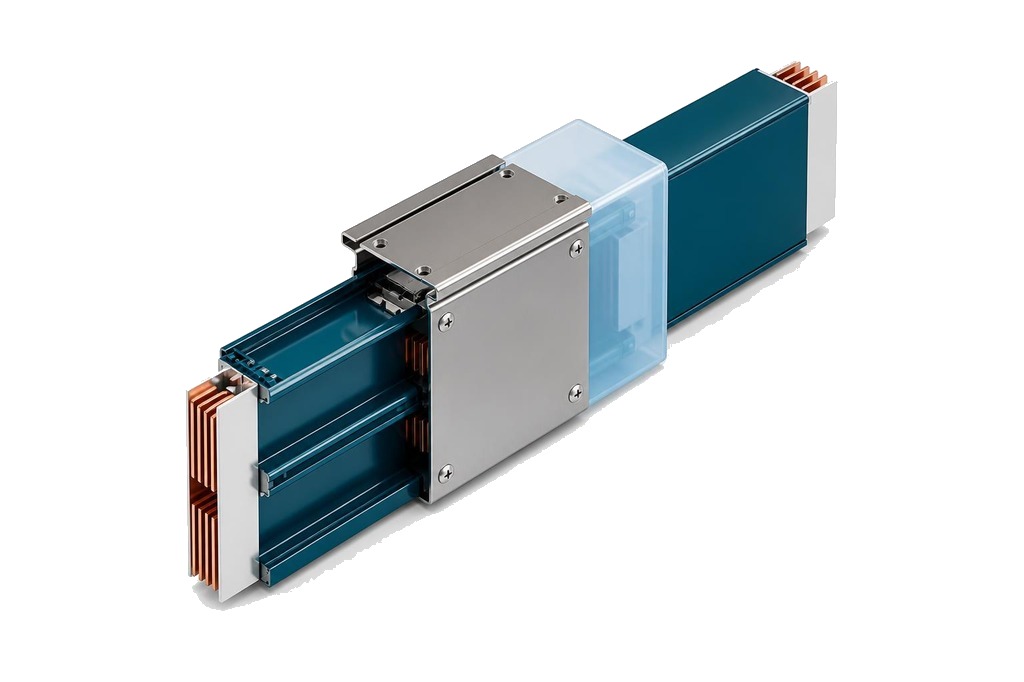

Cast-Resin Busway IP68
Sealed busway in cast polymer housing for harsh environmental conditions (dust, moisture, chemical exposure). Suitable for underground installation. Aluminum conductors (SVA) or copper (SVS).
- IP68 protection rating
- Resistant to corrosion, UV radiation, and external contaminants
- Maintains operation when submerged
- Fire protection of opening up to 240 min — complete with mineral boards and adhesive (according to kit documentation)
For designers: installation possible in challenging conditions. Section composition and geometry — project-specific.
Sizes and selection
Specific ratings, section lengths, corner and tap-off configurations are selected from the catalog and data sheet. Approximate series structure is shown below.
Busbar trunking series and conductor material
| Series | Conductor material | Protection rating | Type |
|---|---|---|---|
| MVA | Aluminum | IP55 / IP66 | Main line |
| MVS | Copper | IP55 / IP66 | Main line |
| SVA | Aluminum | IP68 | Cast resin |
| SVS | Copper | IP68 | Cast resin |
Busbar trunking vs. cable system comparison
Using busbar trunking instead of cable trays provides time and cost savings. Key parameters — according to METAENERGY materials.
| Parameter | METAENERGY busbar trunking | Cable tray |
|---|---|---|
| Installation speed | Twice as fast due to prefabricated sections and mounting hardware | Longer installation time with termination and routing of each line |
| Cost savings | Up to 30% of total cost compared to equivalent cable scheme | Higher costs for installation, cable management systems, and connections |
| Overload capacity | Insulation withstands up to 150 °C, continuous overload up to 120 % | Cable insulation is typically rated for 95–105 °C |
| Heat dissipation | Convection and heat radiation through housing with cooling fins | Insulation layers trap heat |
| Load connection | No separate termination required for each tap-off point | Termination and separate connection required |
Insulation service life — at least 25 years
METAENERGY busbar trunking insulation withstands continuous overload, contains no halogens or phenolic resins, operating temperature up to 150 °C. Confirmed by data sheet and test reports.
Advantages
METAENERGY busbar trunking systems — main power distribution in compliance with GOST and IEC.
Russian manufacturing
Local production, adaptation to EAEU requirements, reduced delivery and logistics time.
Documentation and components from catalog
Complete set: data sheet, specification, assembly map, joint and tap-off units with protection against incorrect connection.
Design engineer support
Rating, configuration and insulation selection tailored to the project, based on catalog and quotation.
Additional for design engineer
Specifications and project quotations
Part numbers for 88xx and 89xx series, precise route configuration selection, package coordination.
Data sheet and test reports
Overload up to 120 %, insulation service life ≥25 years, characteristics by type.
Joint units with error protection
Covers with threaded fastening, impossible incorrect assembly.
Assembly map and identification tags
Each section is marked with a number according to the construction and installation drawing.
Ingress protection ratings per IEC 60529
IP55, IP66 for busbar trunking, IP68 for cast-resin — selection for environment.
GOST and IEC compliance
Application in projects with Russian and international standard requirements.
Position in METAENERGY product range
Busbar trunking up to 1 kV is part of the METAENERGY power equipment range. Related products are supplied for projects.
Rated voltage
up to 1 kV
Busbar trunking and cast-resin busway are rated for low-voltage systems.
Ingress protection
from IP55 to IP68
Busbar trunking — IP55/IP66, cast-resin — IP68.
Conductor material
aluminum or copper
MVA/SVA series — Al, MVS/SVS series — Cu.
